Reducing Burrs and Sharp Edges with Busbar Chamfering Machines

Introduction

In the manufacturing and electrical industries, busbars are essential components used to distribute power efficiently. These metallic strips or bars, typically made of copper or aluminum, are designed to conduct electricity within switchboards, distribution boards, and other electrical equipment. However, during the production process, busbars often develop burrs and sharp edges, which can pose significant challenges in terms of safety, performance, and reliability. To address these issues, busbar chamfering machines have emerged as critical tools in the manufacturing process. This article explores the importance of reducing burrs and sharp edges on busbars, the role of chamfering machines, and the benefits they bring to the industry.

Understanding Burrs and Sharp Edges

Burrs are unwanted raised edges or small pieces of material that remain attached to a workpiece after machining, cutting, or stamping processes. Sharp edges, on the other hand, are the result of incomplete finishing or improper handling of the material. Both burrs and sharp edges can compromise the quality and functionality of busbars in several ways:

1. Safety Hazards: Sharp edges and burrs can cause injuries to workers during handling, installation, or maintenance. They can also damage insulation materials, leading to electrical faults or short circuits.

2. Electrical Performance: Burrs can create uneven surfaces, which may lead to poor electrical contact and increased resistance. This can result in overheating, energy loss, and reduced efficiency.

3. Corrosion and Wear: Sharp edges and burrs are more susceptible to corrosion and wear, which can degrade the busbar’s performance over time.

4. Aesthetic and Functional Issues: Burrs and sharp edges can affect the appearance of the final product and make it difficult to assemble or integrate with other components.

Given these challenges, it is crucial to implement effective methods for removing burrs and sharp edges during the manufacturing process.

The Role of Busbar Chamfering Machines

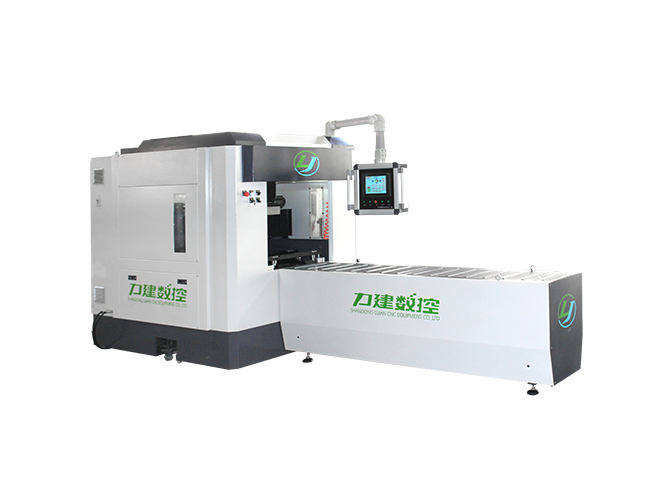

Busbar chamfering machines are specialized equipment designed to remove burrs and sharp edges from busbars. These machines use precise cutting or grinding techniques to create smooth, beveled edges, ensuring that the busbars meet the required standards for safety and performance. The chamfering process involves cutting or grinding the edges of the busbar at a specific angle, typically 45 degrees, to eliminate sharpness and create a clean, finished appearance.

Key Features of Busbar Chamfering Machines

1. Precision and Accuracy: Modern chamfering machines are equipped with advanced control systems that ensure precise and consistent results. This is essential for maintaining the integrity and functionality of the busbars.

2. Automation: Many chamfering machines are fully or semi-automated, reducing the need for manual intervention and minimizing the risk of human error. Automation also improves efficiency and throughput.

3. Versatility: Chamfering machines can handle busbars of various sizes, thicknesses, and materials, making them suitable for a wide range of applications.

4. Durability: These machines are built to withstand the rigors of industrial environments, ensuring long-lasting performance and reliability.

5. Safety Features: Chamfering machines are designed with safety in mind, incorporating features such as guards, emergency stop buttons, and dust extraction systems to protect operators and maintain a clean working environment.

The Chamfering Process

The chamfering process typically involves the following steps:

1. Preparation: The busbar is prepared by cutting it to the required length and shape. This may involve shearing, punching, or other machining processes.

2. Positioning: The busbar is positioned in the chamfering machine, either manually or using an automated feeding system.

3. Chamfering: The machine’s cutting or grinding tools are applied to the edges of the busbar at the desired angle. This removes burrs and sharp edges, creating a smooth, beveled finish.

4. Inspection: The chamfered busbar is inspected to ensure that it meets the required specifications. Any defects or inconsistencies are addressed before the busbar proceeds to the next stage of production.

5. Finishing: Depending on the application, the busbar may undergo additional finishing processes, such as polishing, coating, or insulation.

Benefits of Using Busbar Chamfering Machines

1. Improved Safety: By eliminating sharp edges and burrs, chamfering machines reduce the risk of injuries and accidents in the workplace. This contributes to a safer working environment and lower liability for manufacturers.

2. Enhanced Electrical Performance: Smooth, burr-free edges ensure better electrical contact and conductivity, reducing the risk of overheating and energy loss. This improves the overall efficiency and reliability of the electrical system.

3. Increased Durability: Chamfering removes vulnerable areas that are prone to corrosion and wear, extending the lifespan of the busbars and reducing maintenance costs.

4. Higher Quality and Consistency: Chamfering machines deliver consistent results, ensuring that every busbar meets the required standards for quality and performance. This is particularly important in industries where precision and reliability are critical.

5. Cost Savings: By automating the chamfering process, manufacturers can reduce labor costs and increase production efficiency. Additionally, the improved quality and durability of chamfered busbars can lead to fewer defects and lower warranty claims.

6. Aesthetic Appeal: Chamfered busbars have a clean, professional appearance, which can enhance the overall look of the final product and improve customer satisfaction.

Applications of Chamfered Busbars

Chamfered busbars are used in a wide range of applications across various industries, including:

1. Electrical Distribution: In switchboards, distribution boards, and panel boards, chamfered busbars ensure safe and efficient power distribution.

2. Renewable Energy: In solar power systems, wind turbines, and other renewable energy installations, chamfered busbars are used to connect and distribute power from the energy source to the grid or storage system.

3. Industrial Machinery: In manufacturing and industrial equipment, chamfered busbars provide reliable power distribution and reduce the risk of electrical faults.

4. Transportation: In electric vehicles, trains, and other transportation systems, chamfered busbars are used to connect batteries, motors, and other electrical components.

5. Telecommunications: In data centers and telecommunications infrastructure, chamfered busbars ensure efficient power distribution and reduce the risk of downtime.

Challenges and Considerations

While busbar chamfering machines offer numerous benefits, there are some challenges and considerations to keep in mind:

1. Initial Investment: The cost of purchasing and installing a chamfering machine can be significant, particularly for small or medium-sized manufacturers. However, the long-term benefits often outweigh the initial investment.

2. Maintenance and Training: Chamfering machines require regular maintenance to ensure optimal performance. Additionally, operators may need training to use the equipment effectively and safely.

3. Material Compatibility: Different materials may require different chamfering techniques or tools. It is important to select a machine that is compatible with the specific materials used in the production process.

4. Production Volume: The choice of chamfering machine may depend on the volume of busbars being produced. High-volume manufacturers may benefit from fully automated systems, while low-volume producers may opt for semi-automated or manual machines.

Future Trends in Busbar Chamfering

As technology continues to advance, several trends are shaping the future of busbar chamfering:

1. Increased Automation: The trend towards greater automation is expected to continue, with more manufacturers adopting fully automated chamfering systems to improve efficiency and reduce labor costs.

2. Integration with Industry 4.0: Chamfering machines are increasingly being integrated into smart manufacturing systems, allowing for real-time monitoring, data analysis, and predictive maintenance.

3. Advanced Materials: As new materials are developed for busbars, chamfering machines will need to adapt to handle these materials effectively. This may involve the development of new cutting or grinding techniques.

4. Sustainability: Manufacturers are increasingly focused on sustainability, and chamfering machines are being designed to minimize waste and energy consumption. This includes the use of eco-friendly materials and processes.

Conclusion

Busbar chamfering machines play a vital role in reducing burrs and sharp edges, ensuring that busbars meet the highest standards for safety, performance, and reliability. By investing in these machines, manufacturers can improve the quality of their products, enhance workplace safety, and achieve significant cost savings. As technology continues to evolve, the future of busbar chamfering looks promising, with trends such as increased automation, integration with Industry 4.0, and a focus on sustainability driving innovation in the industry. Whether in electrical distribution, renewable energy, industrial machinery, or transportation, chamfered busbars are essential components that contribute to the efficient and reliable operation of electrical systems worldwide.
